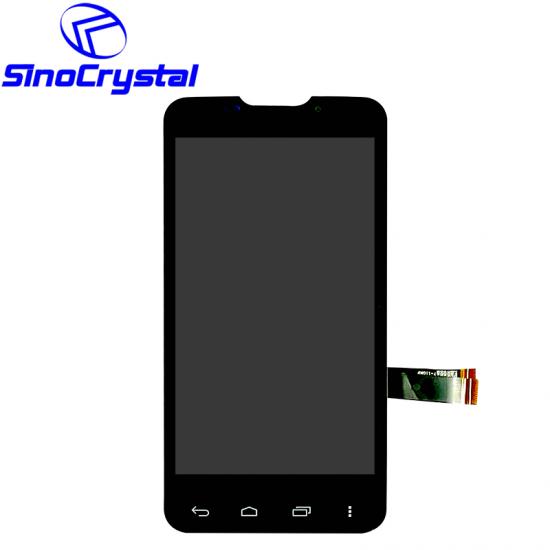

4.3英寸IPS CTP触摸液晶显示器,带480RGB*800全视图MIPI-2CH接口ST7701 IC

SCT043005-V01是一款4.3英寸IPS触摸屏TFT液晶显示器,分辨率480RGB*800,内置ST7701集成电路,支持MIPI-2CH接口,25针


  • 型号:

    SCT043005-V01
  • Size (inch)尺寸(英寸):

    4.3寸
  • 分辨率:

    480*800
  • 外形尺寸(mm):

    69.06x104.5x0.1.7
  • 可视尺寸(mm):

    94.80x57.36
  • 视域尺寸(mm):

    90.60x56.16
  • 视角:

    IPS
  • 接口:

    Mipi-2CH
  • IC型号:

    ST7701
  • 亮度(cd/m m2):

    300
  • 触摸:

    CTP
  • 温度 (℃):

    -20°C~70°C
  • 产品详细信息

Basic Information


Resolution:                    480RGB*800

Outline Dimension:       63.76*124.84*3.2

Active Area:                  56.16*93.6

View area:                     56.94*97.1

Interface:                      Mipi-2CH

Driver IC:                       ST7701

View Direction:              IPS

PIN:                                25

Backlight:                      White LED

Touch Screen:              Capacitive Touch Screen




Drawing





General Specification


Item Nominal Dimension Unit
  Dot Matrix 480 x RGB x 800 Dots
  Module Size ( W×H×T ) 63.76 x 124.84 x 3.2 mm.
  Active Area ( W×H ) 56.16 x 93.6 mm.
  Pixel arrangement RGB Stripe mm.
  Dot Pitch ( W×H ) 0.117 x 0.117 mm.
  Color depth 16.7M colors
  Interface MIPI DSI -
  Driving IC Package COG -
  Operating temperature -20 ~70 ºC
  Storage temperature -30~80 ºC
  LCD Type IPS -
  LCD Mode Normal Black -
  Backlight Type LED x 9 PCS



Interface Definition


Pin No Pin Symbol Level Description
1 GND 0V Ground
2 MIPI_D1_P

3 MIPI_D1_N
These pins are DSI-D1+/- differential data signals if MIPI interface
4 GND 0V Ground
5 MIPI_CLK_P

6 MIPI_CLK_N
These pins are DSI-CLK+/- differential clock signals if MIPI interface
7 GND 0V Ground
8 MIPI_D0_P

9 MIPI_D0_N
These pins are DSI-D0+/- differential data signals if MIPI interface
10 GND 0V Ground
11 LEDK - LED light, cathode.
12 LEDK - LED light, cathode.
13 LEDA - LED light, anode
14 LEDA - LED light, anode
15 GND 0V Ground
16 VCC 2.5-4.8V Power supply
17 GND 0V Ground
18 IOVCC 1.65-3.3V Power supply for logic
19 RESET H/L Reset signal
20 FMARK H/L Tearing effect output
21 LED_PWM - The PWM frequency output for LCD driver control
22 IM2 - Interface Mode, have been connected to IOVCC with 1K resistance in FPC.
23 LCD_ID - LCD ID, have been connected to IOVCC with 1K resistance in FPC.
24 GND 0V Ground
25 GND 0V Ground

CTP Interface Definition

Pin No Pin Symbol Level Description
1 VCC 2.8V Power supply for CTP system
2 RST H/L Reset signal
3 INT H/L Interrupt output
4 SCL H/L I2C clock
5 SDA H/L I2C data
6 IOVDD 1.8V Power supply for CTP IO
43657 GND 0V Ground
