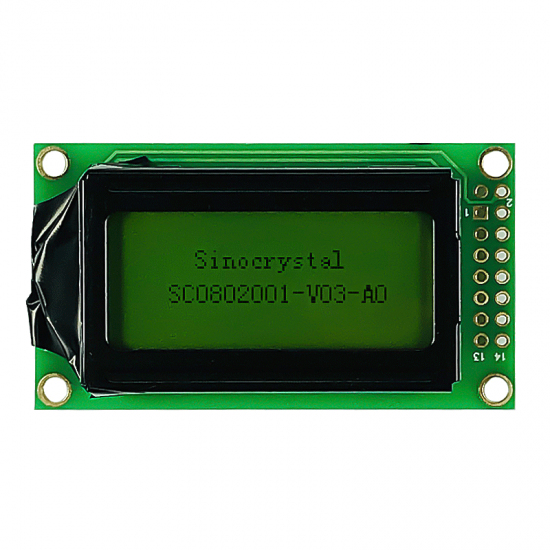

SC0802001-V03是一款8*2分辨率的字符液晶显示器,内置SPLC780D集成电路,16针,6点钟视角。
型号:
SC0802001-V03Resolution:
80×80Outline Dimension (mm):
25.0×28.5×2.2Viewing Area (mm):
21*21Interface:
-Driver IC:
ST7527Backlight:
NO BacklightPIN:
11
Basic Information
LCD Type: STN/Y-G/Positive/Transflective/COB
Resolution: 8*2
Outline Dimension: 58.00*32.00*9.7
Active Area: 27.45*11.50
View area: 38.00*16.00
Driver IC: SPLC780D
View Direction: 6 o'clock
PIN: 16
Backlight: Yellow-Green LED
Drawing
General Specification
ITEM
STANDARD VALUE
UNIT
NUMBER OF CHARACTER
8×2
Mm
MODULE DIMENSION
58.0×32.0×9.7
Mm
VIEWING AREA
38.0×16.0
Mm
DOT SIZE
0.55×0.65
Mm
DOT PITCH
0.60×0.70
Mm
LCD TYPE
STN/YELLOW-GREEN/POSITIVE/TRANSFLECTIVE
DUTY
1/16
VIEWING DIRECTION
0.25
o'clock
BACK LIGHT TYPE
SIDE LIT LED
BACK LIGHT COLOR
YELLOW-GREEN
APPROX. WEIGHT
TBD
G
Interface Definition
Pin No.
Symbol
Level
Description
1
VSS
--
Gound
2
VDD
--
Supply voltage for logic
3
V0
--
Supply voltage for LCD
4--11
Register selection input
H : Indicate that DB0 to DB7 are display data. L : Indicate that DB0 to DB7 are control data
12
RW
H/L
Read or Write signal
0 : Write
1 : Read
13
E
H/L
Enable signal
14
DB0-DB7
H/L
8-bit bi-directional data bus
15
LED-
---
LED backlight cathode
16
LED+
--
LED backlight anode
