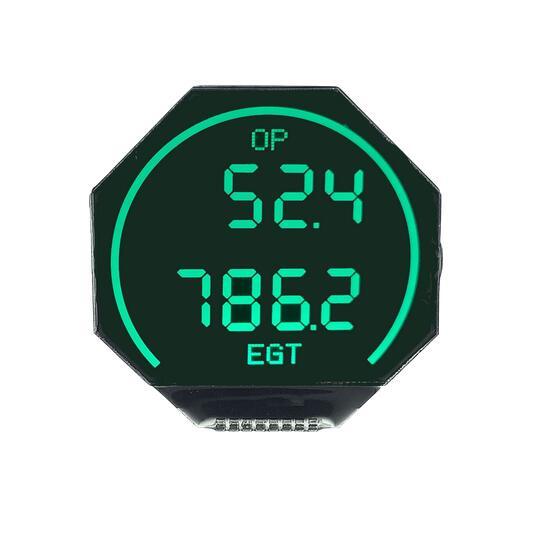

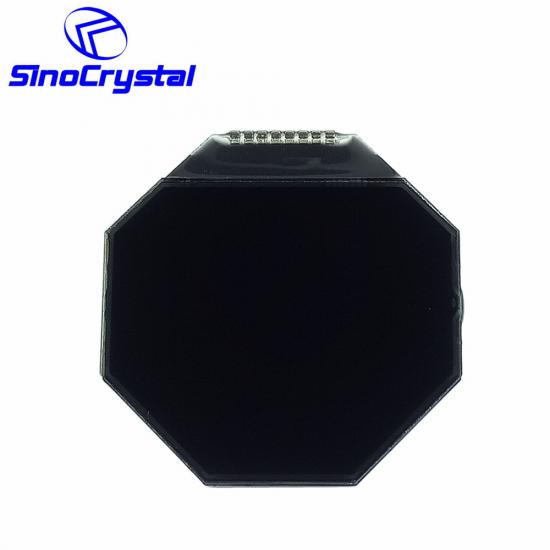

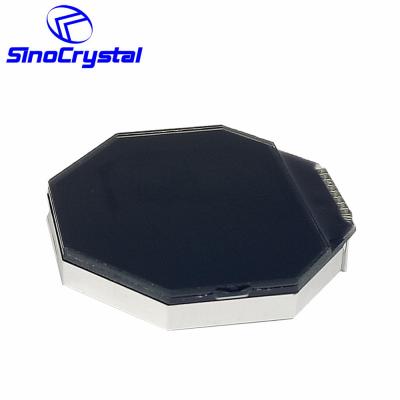

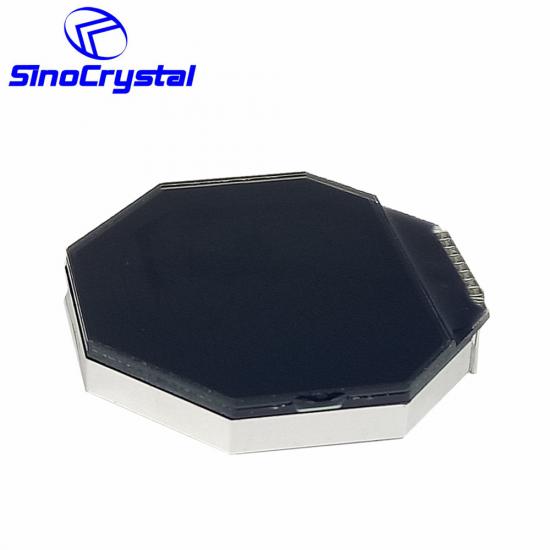

SCC0055-V01是一个圆形单液晶显示器
液晶显示器类型：TN-VA负透射齿轮
图形编号：段
外形尺寸：46.20*46.20*7.70
视野范围：30.19*21.00
驱动芯片：ST7032I-0D
观看方向：12点
引脚：8
背光：RGB LED
液晶显示器类型：TN-VA负透射齿轮
图形编号：段
外形尺寸：46.20*46.20*7.70
视野范围：30.19*21.00
驱动芯片：ST7032I-0D
观看方向：12点
引脚：8
背光：RGB LED
型号:
SCC0055-V01Display Type:
TN-VAOutline Dimension (mm):
46.20*46.20*7.70View area:
30.19*21.00Driver IC:
ST7032I-0DBacklight:
RGB LEDView Direction:
12PIN:
8

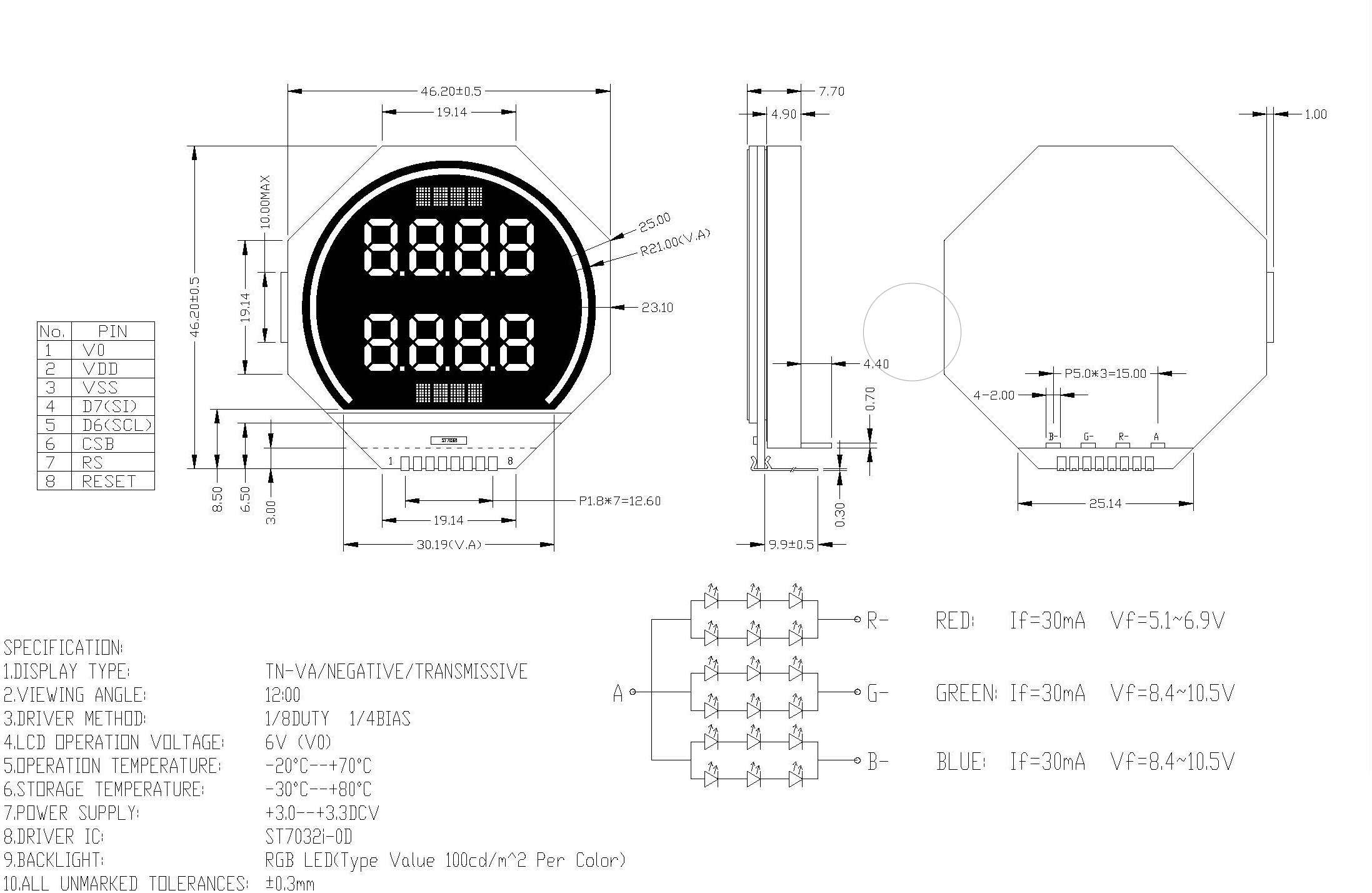

Drawing
General Specification
| ITEM | STANDARD VALUE | UNIT |
| NUMBER OF CHARACTER | 4x2 + ICON | Mm |
| MODULE DIMENSION | 46.2×46.2×7.7 | Mm |
| VIEWING AREA | 42.0×35.6 | Mm |
| DOT SIZE | 0.38×0.35 | Mm |
| DOT PITCH | 0.42×0.39 | Mm |
| LCD TYPE | TN-VA/NEGATIVE/TRANSMISSIVE |
|
| DUTY | 1/8 |
|
| VIEWING DIRECTION | 0.5 | o'clock |
| BACK LIGHT TYPE | SIDE LIT LED |
|
| BACK LIGHT COLOR | RGB COLOR |
|
| APPROX. WEIGHT | TBD | G |
Interface Definition
| Pin No. | Symbol | Level | Description | ||||
| 1 | V0 | -- |
|
||||
| pply voltage for logic | |||||||
| 3 | VSS | -- | Ground | ||||
| 4 | D7(SI) | H/L | serial data input | ||||
| 5 | D6(SCL) | H/L | the serial clock input | ||||
| 6 | CSB | H/L | Chip select signal | ||||
| 7 | RS | H/L |
Register selection input H : display data. L : control data |
||||
| 8 | RESET | H/L | Chip reset signal |
