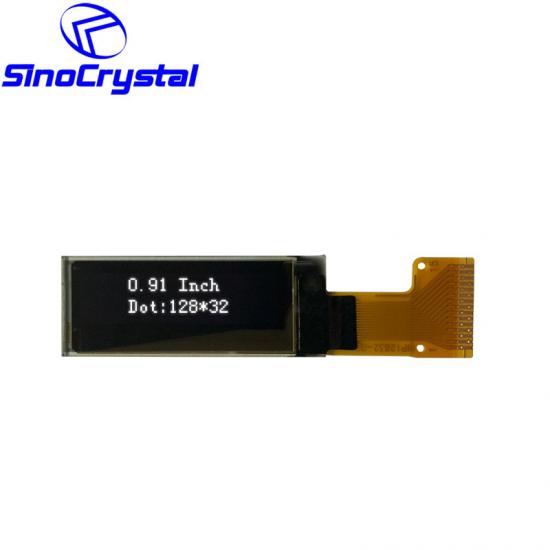

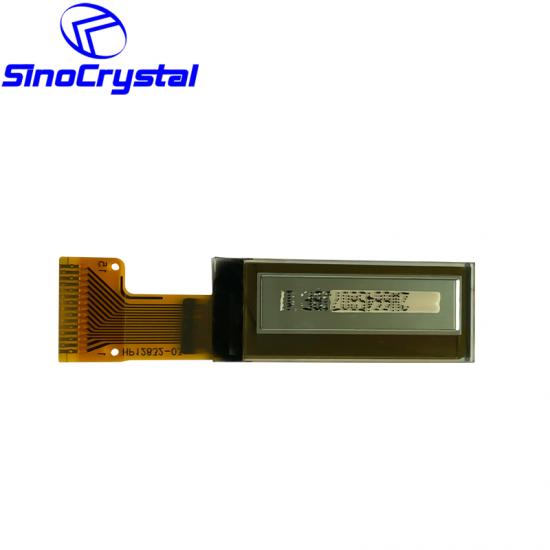

SCE091003-V01是一种COG型OLED显示器,分辨率128×32,SSD1306BZ集成电路,4线串行接口,15针
型号:
SCE091003-V01Size (inch)尺寸(英寸):
0.91寸Resolution:
128×32Outline Dimension (mm):
30.0×11.50×1.227Viewing Area (mm):
24.384x7.584Active Area (mm):
22.384×5.584Interface:
4-wire SPIIC Part No.:
SSD1306BZColor:
Monochrome (White)PIN:
15FPC type:
Soldering
Basic Information
Display Color: WHITE
Dot Matrix: 128×32
Drive IC: SSD1306BZ
Viewing Angle: 160°
Aperture rate: 82.5%
Interface: 4 wire serial interface
Outline Dimension: 30.0(W)x11.5(H)x1.227(D)
View area: 24.384 (W) x 7.584(H)
PIN: 15
FPC Type: Soldering
General Specification
| ITEM | SPECIFICATIONS | UNIT |
| MODULE SIZE | 30.0(W)x11.5(H)x1.227(D) | mm |
| VIEWING AREA | 24.384 (W) x 7.584(H) | mm |
| ACTIVE AREA | 22.384 (W) x5.584(H) | mm |
| DOT SIZE | 0.159(W) x0.159(H) | mm |
| DOT PITCH | 0.175(W) x0.175 (H) | mm |
| ASSY.TYPE | COG | --- |
| WEIGHT | TBD |
|
Interface Definition
| PIN NO. | SYMBOL | TYPE | FUNCTION DESCRIPTIONS |
| 1 | C2P |
|
C1P/C1N-Pin for charge pump capacitor. C2P/C2N-Pin for charge pump capacitor. Connect to each other with a capacitor. They must be floated when the Charge pump not use. |
| 2 | C2N |
|
|
| 3 | C1P | I | |
| 4 | C1N |
|
|
|
|
|
|
Power supply for charge pump regulator circuit. |
| 5 | VBAT | P |
Power supply for charge pump regulator circuit. It must be connected to external source when charge pump is used. It must be float when charge pump is not used. |
| 6 | VSS | P | Ground pin. It must be connected to external ground. |
| 7 | VDD | P | Power pin for logic circuit. It must be connected to external source. |
| 8 | CS# | I | Chip Select input pin. Active "L" |
| 9 | RES# | I |
Hardware reset input pin. Active "L". |
| 10 | DC# | I |
This is Data/Command control pin. When the pin is pulled HIGH, the data at D[7:0] is data. When the pin is pulled LOW, the data at D[7:0] is command. |
| 11 | SCLK | I | 4 wire serial interface clock wire |
| 12 | SDIN | I | 4 wire serial interface data wire |
| 13 | IREF | I |
Current reference for brightness adjustment. This is segment output current reference pin. A resistor should be connected between this pin and VSS .Set the current at 12.5 uA maximum. |
| 14 | VCOMH | O |
COM signal deselected voltage level. A capacitor should be connected between this pin and VSS. |
| 15 | VCC | P |
Power supply for OLED driving voltage. A capacitor should be connected between this pin and VSS, when charge pump is used. It must be connected to external source when charge pump is not used. |
