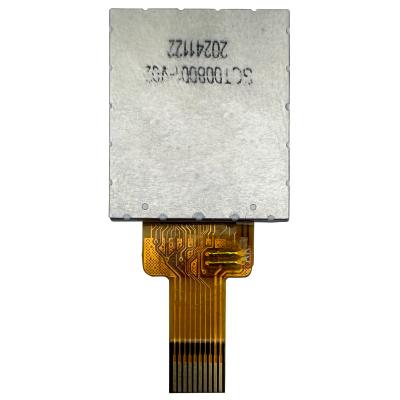

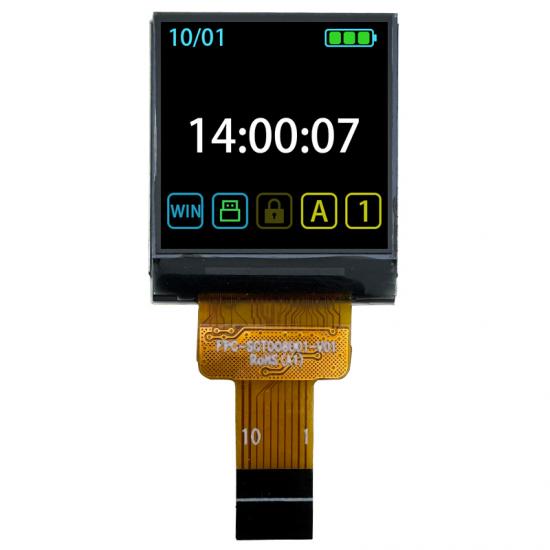

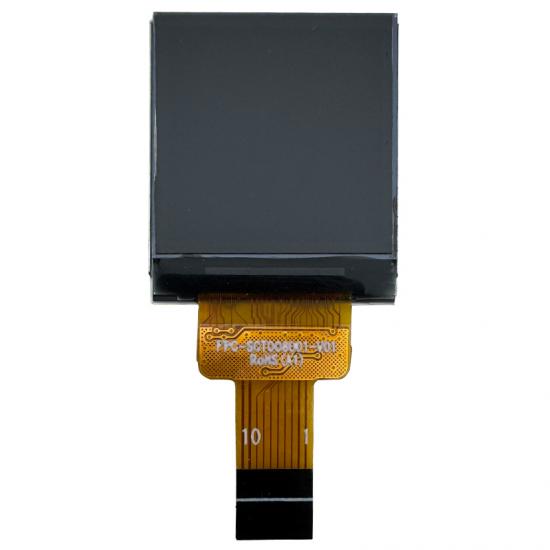

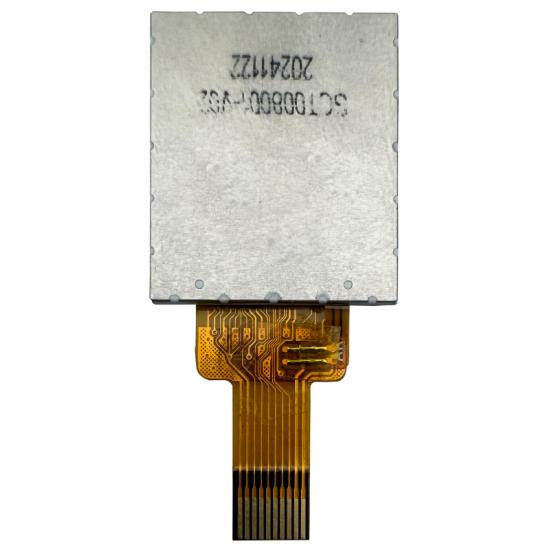

型号:
SCT008001-V02Size (inch)尺寸（英寸）:
0.85寸分辨率:
128x128外形尺寸（mm）:
17.60*20.60*1.45可视尺寸（mm）:
-视域尺寸（mm）:
15.21*15.21视角:
IPS接口:
3-line SPI, 4-line SPIIC型号:
ST7735S亮度（cd/m m2）:
-触摸:
No温度 (℃):
-20°C~70°CBasic Information
Dot Matrix: 128 x 128
Module Size: 17.60 x 20.60 x 1.45 mm.
Active Area: 15.21 x 15.21 mm.
Interface: 3-line SPI, 4-line SPI
Driving IC: ST7735S
View Direction: IPS Full view
PIN: 10
Backlight: White LED
Touch Screen: No Touch Screen

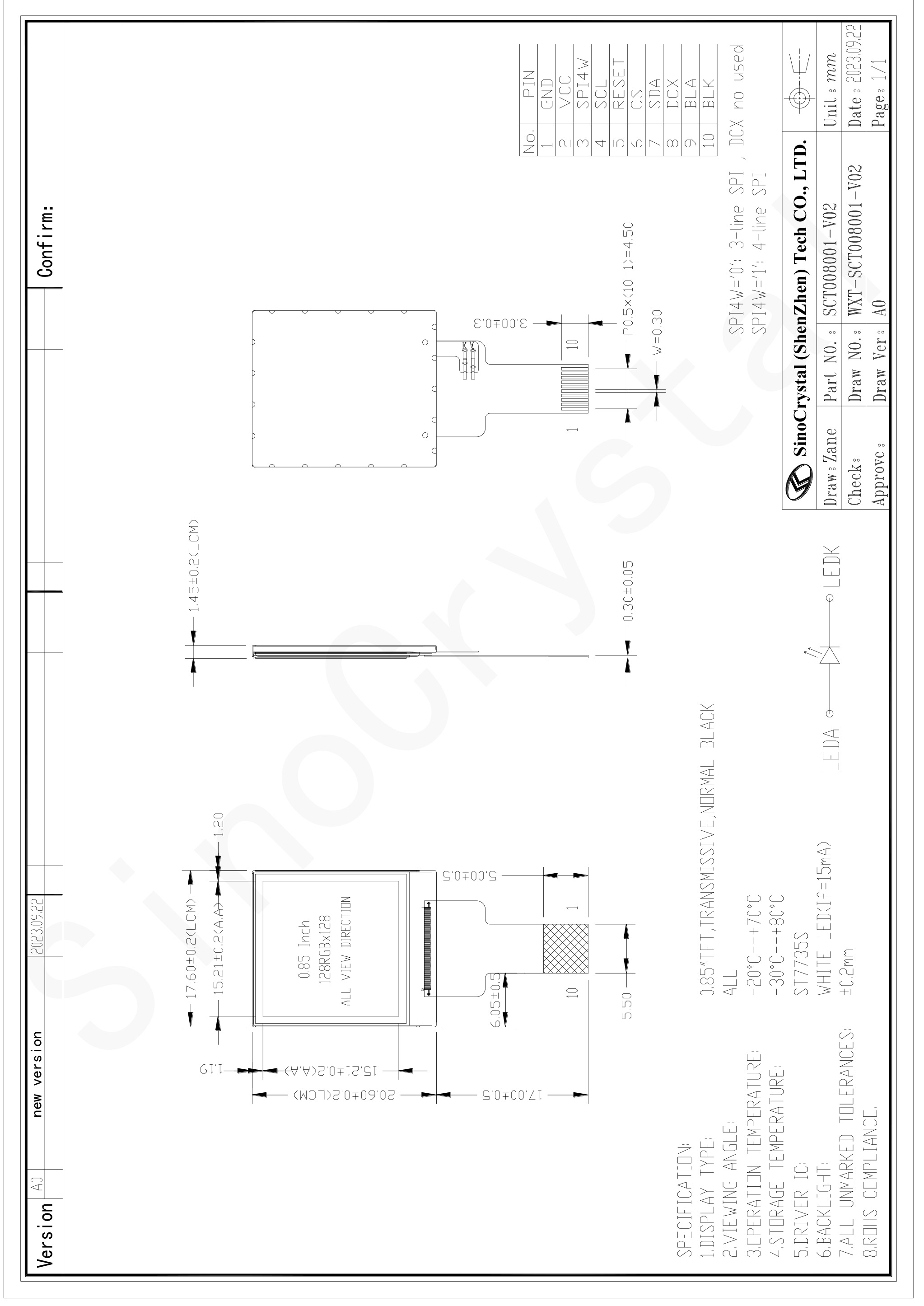

Drawing
General Specification
| Item | Nominal Dimension | Unit |
| Dot Matrix | 128 x RGB x 128 | Dots |
| Module Size ( W×H×T ) | 17.60 x 20.60 x 1.45 | mm. |
| Active Area ( W×H ) | 15.21 x 15.21 | mm. |
| Pixel arrangement | RGB Stripe | mm. |
| Dot Pitch ( W×H ) | 0.1188 x 0.1188 | mm. |
| Color depth | 262K(MAX) | colors |
| Interface | 3-line SPI,4-line SPI | - |
| Driving IC | ST7735S | - |
| Operating temperature | -20 ~70 | ºC |
| Storage temperature | -30~80 | ºC |
| LCD Type | a-Si TFT | - |
| LCD Mode | Normal Black,Transmissive | - |
| Backlight Type | LED x 1 | PCS |
Interface Definition
| Pin No | Pin Symbol | Type | Description |
| 1 | LED+ | P | LED light, anode |
| 2 | LED- | P | LED light, cathode. |
| 3 | D/C | I |
Display data/command selection. D/CX="1":Display data/command selection. D/CX="0":Command Data |
|
4 |
SDA | I/O | Serial data input |
| 5 | CS | I | Chip Select signal |
| 6 | RESET | I | Chip reset signal |
| 7 | SCL | I | Serial clock input signal |
| 8 | SPI4W | I |
- SPI4W='0', 3-line SPI Enable. - SPI4W='1', 4-line SPI Enable |
| 9 | VCC | P | Power supply |
| 10 | GND | P | Ground |
