型号:
SCT009005-V01Size (inch)尺寸（英寸）:
0.96分辨率:
80x160外形尺寸（mm）:
13.54 ×27.95 ×1.50可视尺寸（mm）:
-视域尺寸（mm）:
10.80 ×21.70视角:
IPS接口:
4-line SPIIC型号:
ST7735S亮度（cd/m m2）:
300触摸:
NO温度 (℃):
-20~70Basic Information

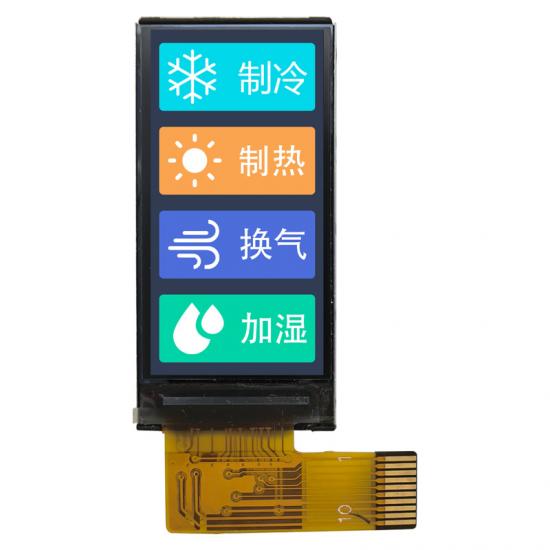

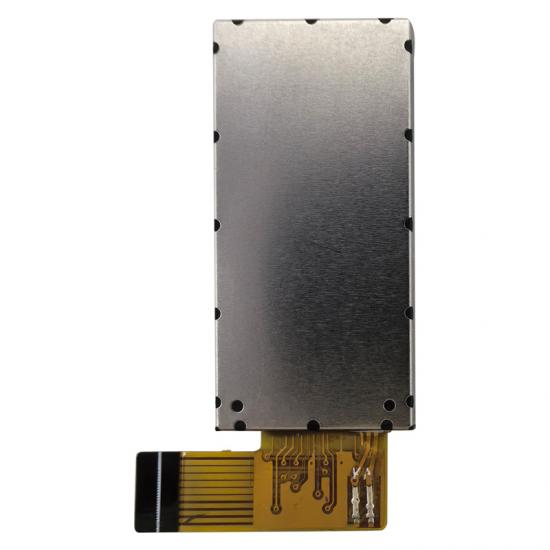

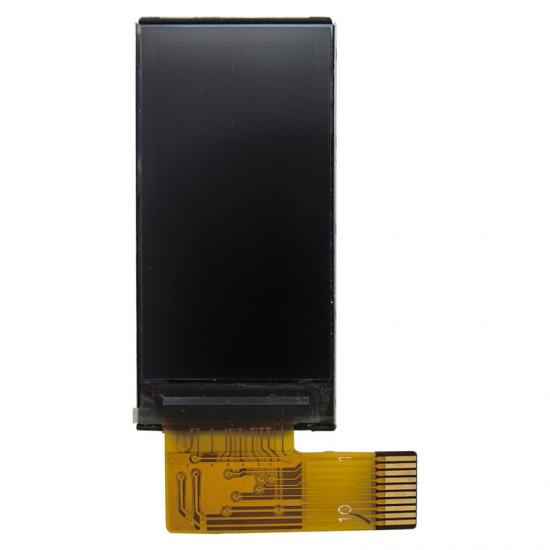

Dot Matrix: 80 x 160
Module Size: 13.54 x 27.95 x 1.50mm.
Active Area: 10.80 x 21.70 mm.
Interface: SPI -
Driving IC: ST7735S
View Direction: IPS Full view
PIN: 10
Backlight: White LED
Touch Screen: No Touch Screen
Drawing
General Specification
| Item | Nominal Dimension | Unit |
| Dot Matrix | 80 x RGB x 160 | Dots |
| Module Size ( W×H×T ) | 13.54 x 27.95 x1.50 | mm. |
| Active Area ( W×H ) | 10.80 x 21.70 | mm. |
| Pixel arrangement | RGB Stripe | mm. |
| Dot Pitch ( W×H ) | 0.135 x 0.1356 | mm. |
| Color depth | 262K(MAX) | colors |
| Interface | 4-line SPI | - |
| Driving IC | ST7735S | - |
| Operating temperature | -20 ~70 | ºC |
| Storage temperature | -30~80 | ºC |
| LCD Type | a-Si TFT | - |
| LCD Mode | Normal Black,Transmissive | - |
| Backlight Type | LED x 1 | PCS |
Interface Definition
| Pin No | Pin Symbol | Type | Description |
| 1 | LED+ | P | LED light, anode |
| 2 | LED- | P | LED light, cathode. |
| 3 | D/C | I | Data / Command selection input |
| 4 | SDA | I/O | Serial data input/output |
| 5 | CS | I | Chip enable |
| 6 | RESET | I | reset signal input |
| 7 | SCL | I | Serial clock input signal |
| 8 | SPI4W | I |
- SPI4W='0', 3-line SPI Enable. - SPI4W='1', 4-line SPI Enable. |
| 9 | VCC | P | Power supply |
| 10 | GND | P | Ground |
