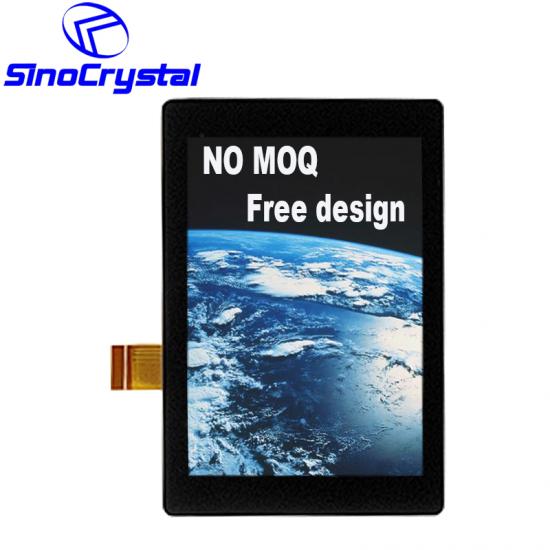

SCT024019-V01是一款2.4英寸IPS TFT液晶显示器，分辨率240RGB*320，内置ST7789V IC，支持8位MCU接口，25针，全视角。
型号:
SCT024019-V01Size (inch)尺寸（英寸）:
2.4寸分辨率:
240*320外形尺寸（mm）:
42.72*60.26*2.45可视尺寸（mm）:
-视域尺寸（mm）:
36.72*48.96视角:
IPS接口:
8 bit MCUIC型号:
ST7789V亮度（cd/m m2）:
350触摸:
No温度 (℃):
-20°C~70°CBasic Information
Resolution: 240RGB*320
Outline Dimension: 47.72*60.26*2.40
Active Area: 36.72*48.96
View area: 40.32*56.26
Interface: 8 bit MCU
Driver IC: ST7789V
View Direction: IPS
PIN: 25
Backlight: White LED
Touch Screen: No touch screen for standard. If you need touch, click for a inquiry.

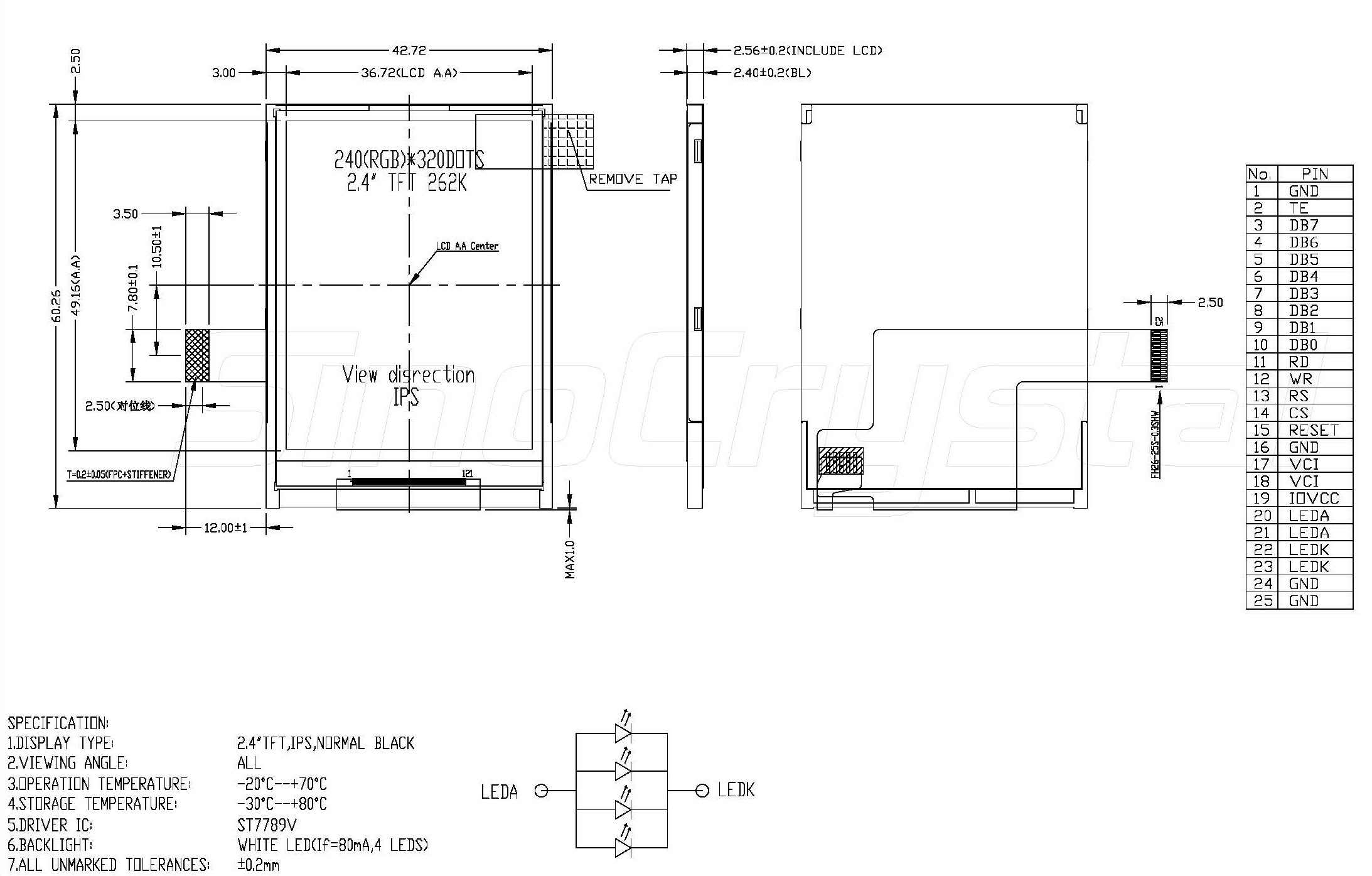

Drawing
General Specification
| Item | Nominal Dimension | Unit |
| Dot Matrix | 240 x RGB x 320 | Dots |
| Module Size ( W×H×T ) | 42.72 x 60.26 x 2.45 | mm. |
| Active Area ( W×H ) | 36.72 x 48.96 | mm. |
| Pixel arrangement | RGB Stripe | mm. |
| Dot Pitch ( W×H ) | 0.153 x 0.153 | mm. |
| Color depth |
262K(MAX) |
colors |
| Interface | 8 bit MCU | - |
| Driving IC Package | COG | - |
| Operating temperature | -20 ~70 | ºC |
| Storage temperature | -30~80 | ºC |
| LCD Type | a-Si TFT | - |
| LCD Mode | Normal Black | - |
| Backlight Type | LED x 4 | PCS |
Interface Definition
Pin No
Pin Symbol
Level
Description
1
GND
0V
Ground
2
TE
H/L
Tearing effect signal output
3
DB7
H/L
Data bus
4
DB6
H/L
Data bus
5
DB5
H/L
Data bus
6
DB4
H/L
Data bus
7
DB3
H/L
Data bus
8
DB2
H/L
Data bus
9
DB1
H/L
Data bus
10
DB0
H/L
Data bus
11
/RD
H/L
Read signal
12
/WR
H/L
Write signal
13
RS
H/L
Register select signal. 0:index register; 1: data register
14
/CS
H/L
Chip Select signal
15
/RESET
H/L
Chip reset signal
16
GND
0V
Ground
17
VCI
2.4-3.3V
Power supply
18
VCI
2.4-3.3V
Power supply
19
IOVCC
1.65-3.3V
Power supply for logic
20
LEDA
-
LED light, anode
21
LEDA
-
LED light, anode
22
LEDK
-
LED light, cathode.
23
LEDK
-
LED light, cathode.
24
GND
0V
Ground
25
GND
0V
Ground
