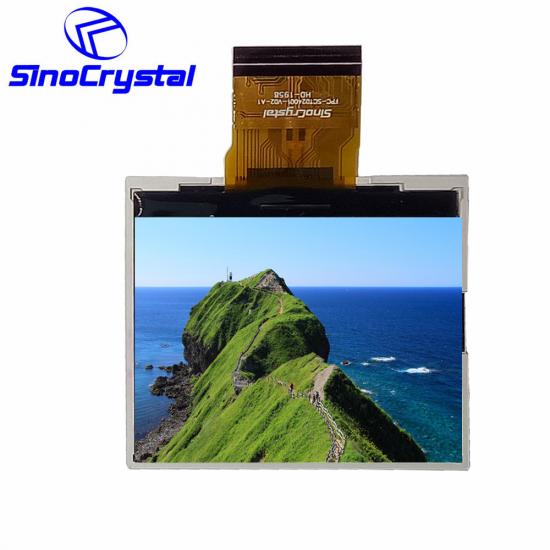

SCT024001-V02是一款2.4寸TFT液晶显示器，分辨率480*234，内置OTA5182A IC，支持8位RGB接口，40针，6点钟方向。
型号:
SCT024001-V02Size (inch)尺寸（英寸）:
2.4寸分辨率:
480*234外形尺寸（mm）:
55.20*47.55*2.80可视尺寸（mm）:
49.00*36.68视域尺寸（mm）:
48.00*35.68视角:
6接口:
8bit RGBIC型号:
OTA5182A亮度（cd/m m2）:
300触摸:
No温度 (℃):
-20°C~70°C
Basic Information
Resolution: 480*234
Outline Dimension: 55.20*47.55*2.80
Active Area: 48.00*35.685
View area: 49.00*36.68
Interface: 8bit RGB
Driver IC: OTA5182A
View Direction: 6 o'clock
PIN: 40
Backlight: White LED
Touch Screen: No touch screen with standard module, But can be added if customer needed.

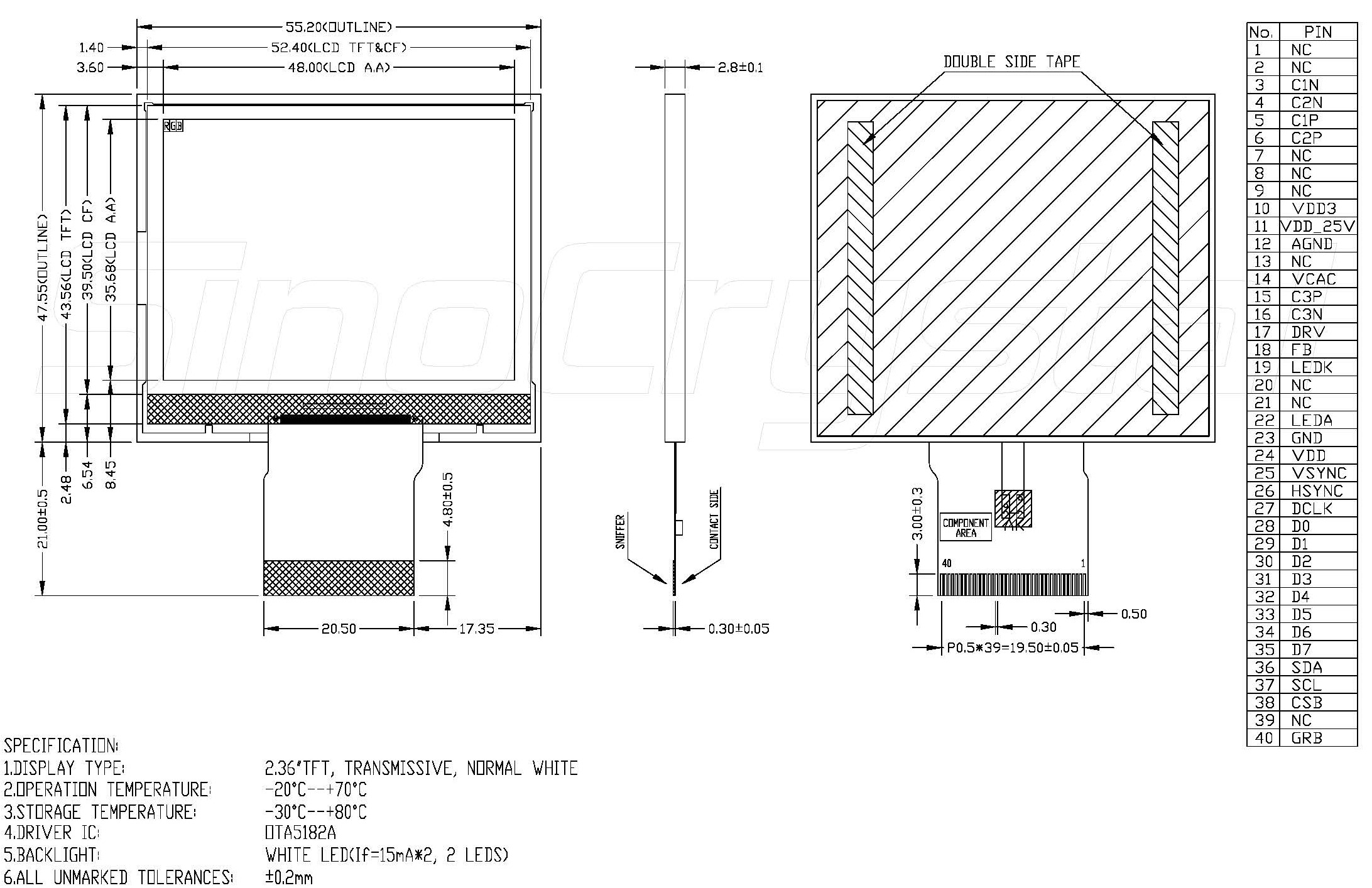

Drawing
General Specification
| Item | Nominal Dimension | Unit |
| Dot Matrix | 480 x 234 | Dots |
| Module Size ( W×H×T ) | 55.2 x 47.55 x 2.8 | mm. |
| Active Area ( W×H ) | 48.0 x 35.685 | mm. |
| Pixel arrangement | RGB Delta Stripe | mm. |
| Color depth | 262K(MAX) | colors |
| Interface | 8 bit RGB | - |
| Driving IC Package | COG | - |
| Operating temperature | -20 ~70 | ºC |
| Storage temperature | -30~80 | ºC |
| LCD Type | a-Si TFT | - |
| LCD Mode | TN/Normal White | - |
| Backlight Type | LED x 2 | PCS |
Interface Definition
Pin No
Pin Symbol
Level
Description
1-2
NC
3
C1N
-
Pins to connect capacitors for power circuitry
4
C2N
-
Pins to connect capacitors for power circuitry
5
C1P
-
Pins to connect capacitors for power circuitry
6
C2P
-
Pins to connect capacitors for power circuitry
7--9
NC
10
VDD3
-
Intermediate voltage for charge pump
11
VDD_25V
-
Intermediate voltage for charge pump
12
AGND
-
Power ground
13
NC
14
VCAC
-
Intermediate voltage for charge pump
15
C3P
-
Pins to connect capacitors for power circuitry
16
C3N
-
Pins to connect capacitors for power circuitry
17
DRV
-
Gate signal for the power transistor of the boost converter
18
FB
-
Main boost regulator feedback input
19
LEDK
-
LED backlight Cathode
20-21
NC
22
LEDA
-
Supply voltage for LED backlight Anode
23
GND
-
Power ground
24
VDD
-
Power supply for analog(1.8V-3.6V)
25
VSYNC
H/L
Frame synchronizing
26
HSYNC
H/L
Line synchronizing
27
DCLK
H/L
Data clock
28-35
D0-D7
H/L
Data input
36
SDA
H/L
Serial data input
37
SCL
H/L
Serial clock input
38
CSB
H/L
Serial chip select, Low enable
39
NC
40
GRB
H/L
Global reset pin
