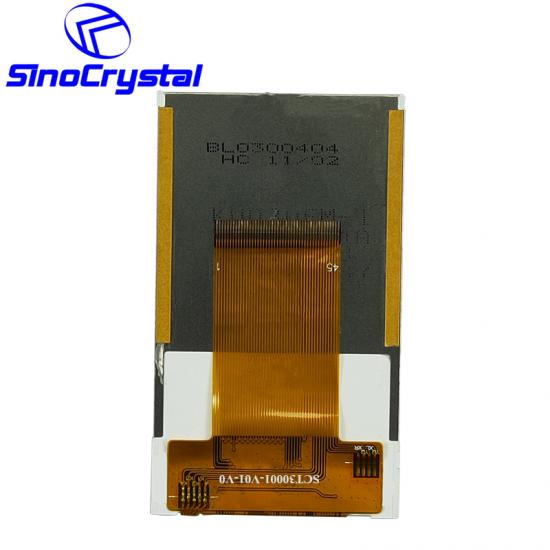

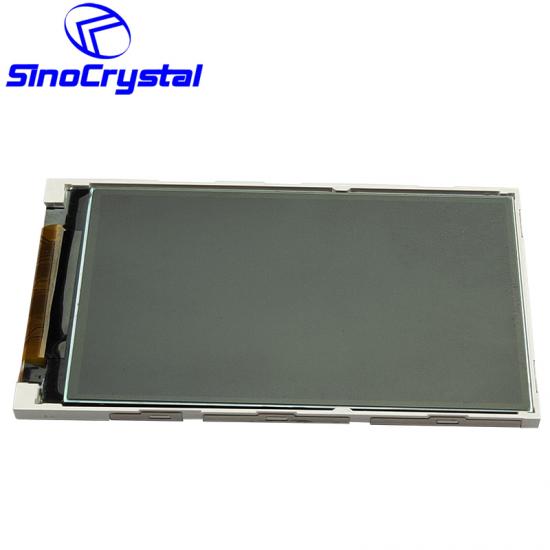

SCT030001-V01是一款3英寸COG TFT液晶显示器，分辨率为960 x 240，内置ILI8961集成电路，40针
型号:
SCT030001-V01Size (inch)尺寸（英寸）:
3寸分辨率:
960*240外形尺寸（mm）:
43.44*74.79*2.6可视尺寸（mm）:
-视域尺寸（mm）:
36.84*65.52视角:
12接口:
8-bit RGB / CCIR / YUVIC型号:
ILI8961亮度（cd/m m2）:
300触摸:
No温度 (℃):
-20°C~70°C
Resolution: 960*240
Outline Dimension: 43.44 x 74.79 x 2.6
Active Area: 36.84 x 65.52
Driver IC: ILI8961
View Direction: 12 o'clock
PIN: 40
Backlight: White LED
Touch Screen: No touch screen for standard. If you need touch, click for a inquiry

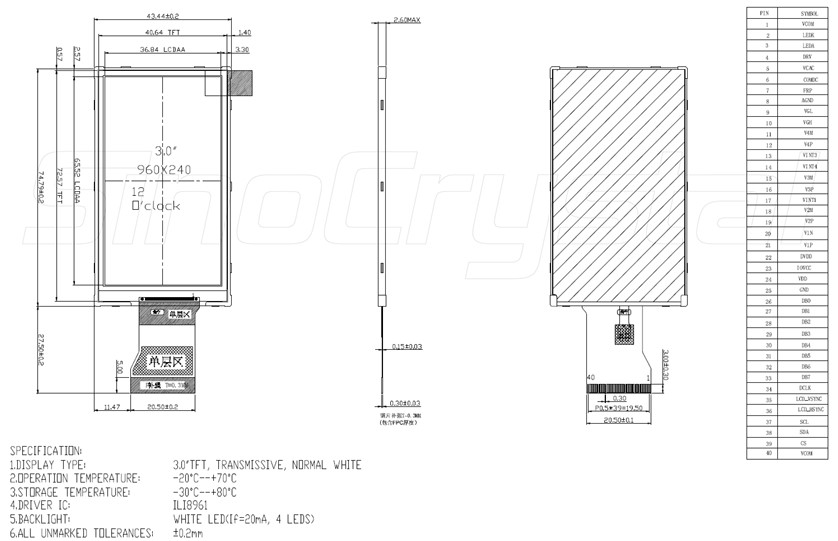

Drawing
General Specification
Item
Nominal Dimension
Unit
Dot Matrix
960 x 240
Dots
Module Size ( W×H×T )
43.44 x 74.79 x 2.6
mm.
Active Area ( W×H )
36.84 x 65.52
mm.
Pixel arrangement
Delta RGB
mm.
Color depth
262K(MAX)
colors
Interface
8-bit RGB / CCIR / YUV
-
Driving IC Package
COG
-
Operating temperature
-20 ~70
ºC
Storage temperature
-30~80
ºC
LCD Type
a-Si TFT
-
LCD Mode
TN/Normal White
-
Backlight Type
LED x 4
PCS
Interface Definition
| Pin No | Pin Symbol | Level | Description |
| 1 | VCOM | - | VCOM |
| 2 | K | - | LED backlight Cathode |
| 3 | A | - | LED backlight Anode |
| 4 | DRV | - | Gate signal for the power transistor of the boost converter |
| 5 | VCAC | - | Intermediate voltage for charge pump |
| 6 | VCOM | - | VCOM DC output |
| 7 | FRP | - | Frame polarity output |
| 8 | AGND | - | Power ground |
| 9 | VGL | - | Negative low power supply for gate driver output |
| 10 | VGH | - | Positive power supply for gate driver output |
| 11 | C4M | - | Pins to connect capacitors for power circuitry |
| 12 | C4P | - | Pins to connect capacitors for power circuitry |
| 13 | VINT3 | - | Floating this pin. |
| 14 | VINT2 | - | Floating this pin. |
| 15 | C3M | - | Pins to connect capacitors for power circuitry |
| 16 | C3P | - | Pins to connect capacitors for power circuitry |
| 17 | VINT1 | - | Power setting capacitor connect pin |
| 18 | C2N | - | Pins to connect capacitors for power circuitry |
| 19 | C2P | - | Pins to connect capacitors for power circuitry |
| 20 | C1N | - | Pins to connect capacitors for power circuitry |
| 21 | C1P | - | Pins to connect capacitors for power circuitry |
| 22 | DVDD | - | Power setting capacitor connecting pins. |
| 23 | VDDIO | 1.65-3.6V | Power supply for charge pump circuit |
| 24 | VDD | 2.7-3.6V | Power supply for digital interface |
| 25 | AGND | - | Power ground |
| 26-33 | D0-D7 | H/L | Data input |
| 34 | DCLK | H/L | Data clock |
| 35 | HSYNC | H/L | Line synchronizing |
| 36 | VSYNC | H/L | Frame synchronizing |
| 37 | SCL | H/L | Serial clock input |
| 38 | SDA | H/L | Serial data input |
| 39 | CSB | H/L | Serial chip select, Low enable |
| 40 | VCOM | - | VCOM |
