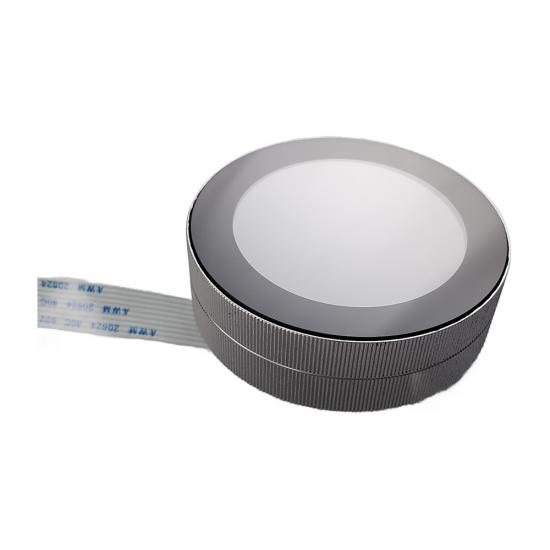

型号:
SCS015001-V01Size (inch)尺寸（英寸）:
1.53分辨率:
360*360外形尺寸（mm）:
53.00*53.00*28.50可视尺寸（mm）:
38.16*38.16视域尺寸（mm）:
-视角:
IPS接口:
18bit RGBIC型号:
-亮度（cd/m m2）:
500触摸:
-温度 (℃):

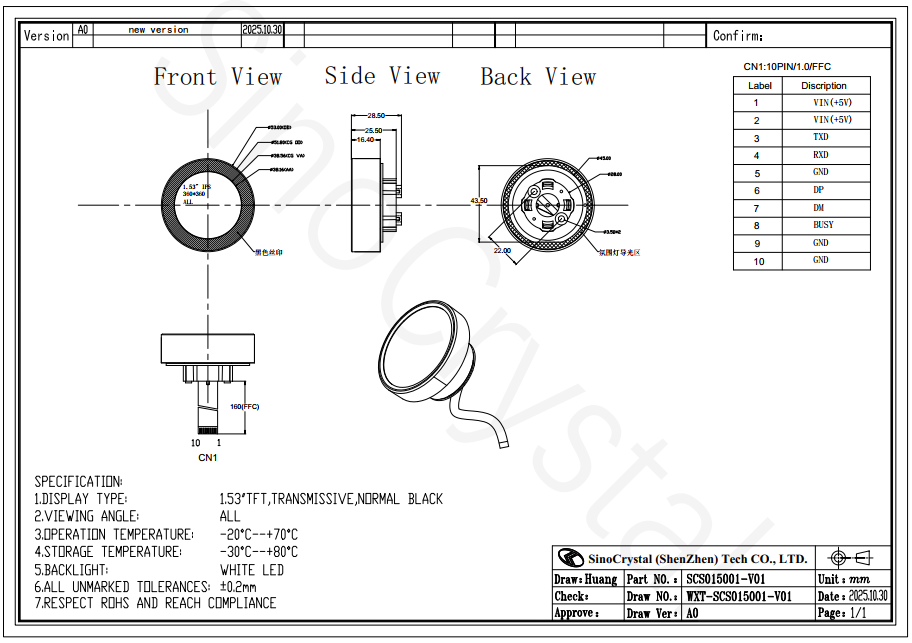

-20~70Drawing
General Specification
Item
Description
Display Type
IPS,TFT LCD
Display Size
1.53 Inch
Resolution
360 x 360
Color Depth
262K Color 18-bit R6G6B6
Active Area
38.16mm x 38.16mm
Luminance
500nits
Backlight Service Life
>20000 hours (Time of the brightness decaying to 50% on the condition of continuous working with the maximum brightess)
Hardware Characteristics
Item
Description
Flash Memory
16M Bytes NOR Flash
Knob Switch
Built in coding switch,supporting left and right rotation for picture switching page display.
Key
Built in silent inching button for key confirmation.
Micor USB
Support USB flash disk update (HOST mode),Used to update program and project files to internal memory
Atmosphere Lamp
RGB tricolor light strip
Interface
10PIN-1.0 pitch with buckle(HY1.0-10P)
Interface Definition
PIN No.
Symbol
Type
Description
1
VIN
P
Power input anode
2
VIN
P
Power input anode
3
TXD
O
UART Serial Port Receiving Port
4
RXD
I
Uart Serial Port Sending Port
5
GND
P
Power Ground
6
DP
P
USB D+
7
DM
P
USB D-
8
BUSY
I
USB Programming control pin (enters programming mode when powered on with low level)
9
GND
P
Power Ground
10
GND
P
Power Ground
