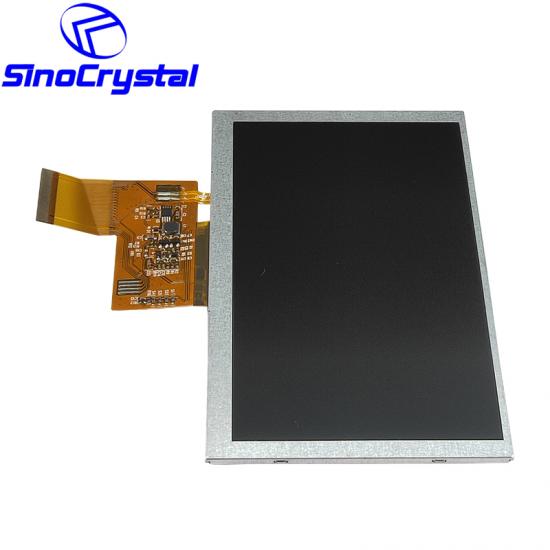

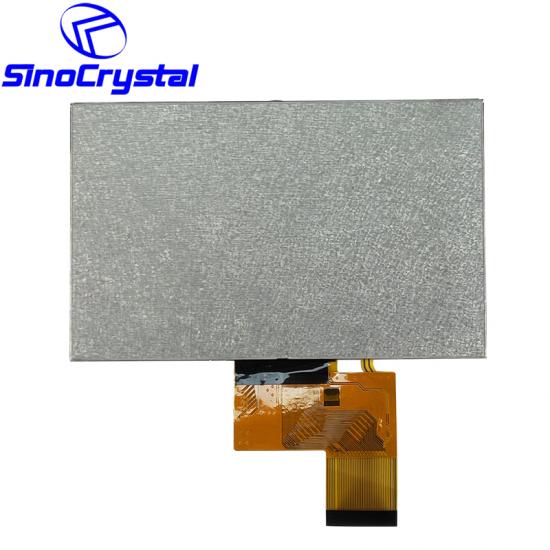

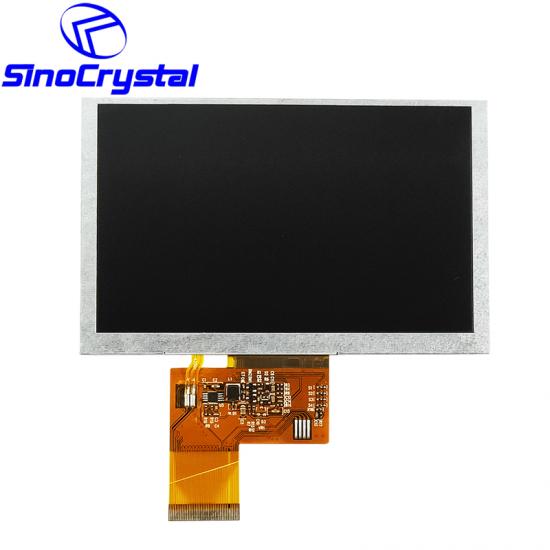

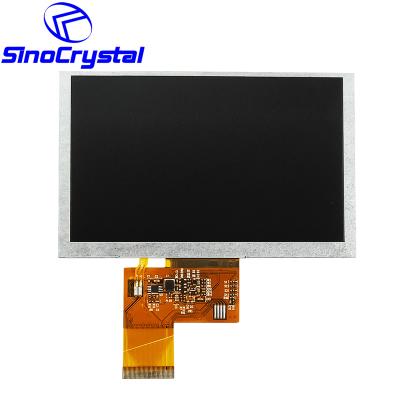

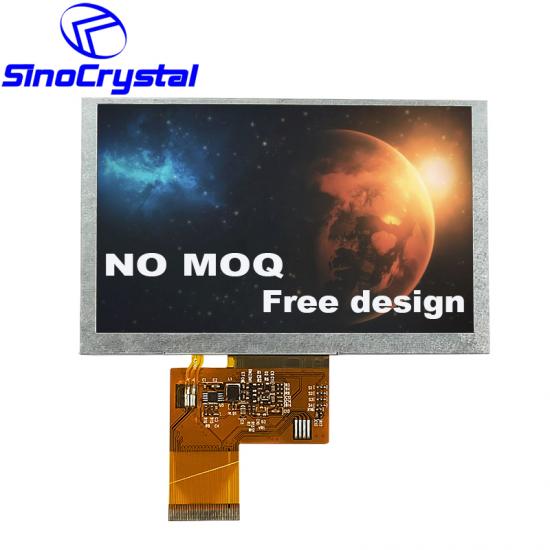

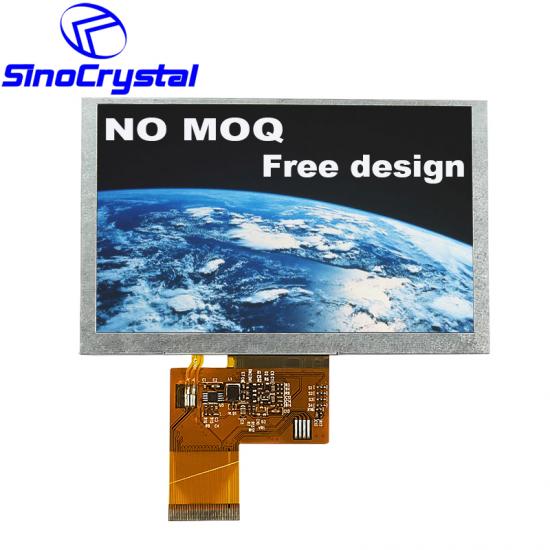

SCT050003-V03是一款5英寸IPS TFT液晶显示器，分辨率720（RGB）×1280，内置ST7703集成电路，支持MIPI显示串行接口，30针
型号:
SCT050003-V03Size (inch)尺寸（英寸）:
5寸分辨率:
720*1280外形尺寸（mm）:
64.30*118.30*1.55可视尺寸（mm）:
-视域尺寸（mm）:
61.78*109.82视角:
IPS接口:
MIPI Display Serial Interface(MIPI DSI)IC型号:
ST7703亮度（cd/m m2）:
300触摸:
No温度 (℃):
-20°C~70°CBasic Information
Resolution: 720 x RGB x 1280
Outline Dimension: 64.30*118.30*1.55
Active Area: 61.78*109.82
Interface: MIPI Display Serial Interface(MIPI DSI)
Driver IC: ST7703
View Direction: IPS
PIN: 30
Backlight: White LED
Touch Screen: No touch screen for standard. If you need touch, click for a inquiry

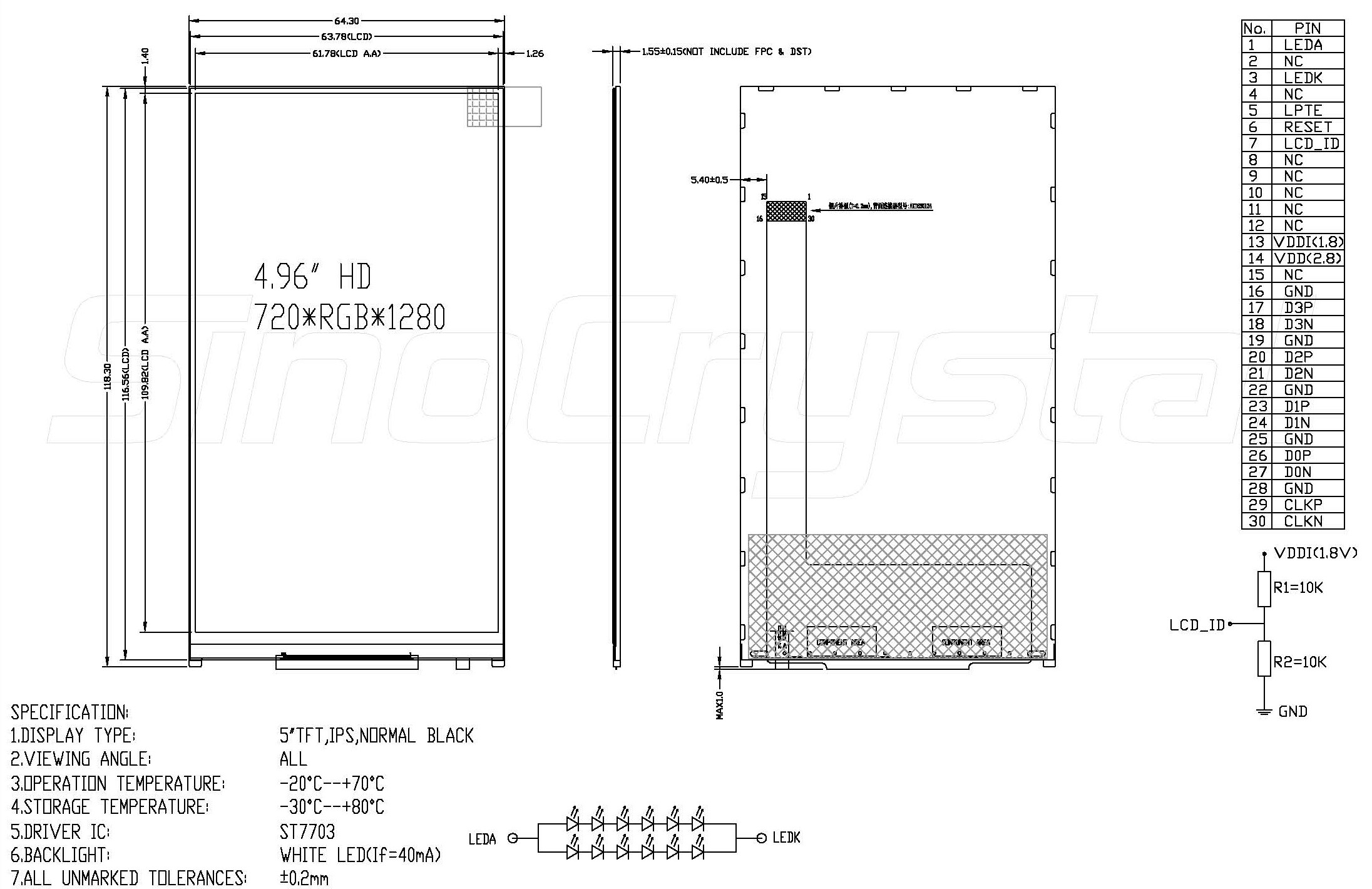

Drawing
General Specification
| Item | Nominal Dimension | Unit |
| Dot Matrix | 720 x RGB x 1280 | Dots |
| Module Size ( W×H×T ) | 64.30 x 118.30 x 1.55 | mm. |
| Active Area ( W×H ) | 61.78 x 109.82 | mm. |
| Pixel arrangement | RGB Stripe | mm. |
| Dot Pitch ( W×H ) | 0.0858 x 0.0858 | mm. |
| Color depth | 16M(MAX) | colors |
| Interface | MIPI DSI | - |
| Driving IC | ST7703 | - |
| Operating temperature | -20 ~70 | ºC |
| Storage temperature | -30~80 | ºC |
| LCD Type | a-Si TFT | - |
| LCD Mode | Normal BLACK | - |
| Backlight Type | LED x 12 | PCS |
Interface Definition
| Pin No | Pin Symbol | Type | Description |
| 1 | LEDA | P | LED backlight anode |
| 2 | NC | - | No connection |
| 3 | LEDK | P | LED backlight cathode |
| 4 | NC | - | No connection |
| 5 | TE | O | Tear effect signal output |
| 6 | RESET | I | Hardware reset |
| 7 | LED_ID | O | LCD ID |
| 43689 | NC | - | No connection |
| 13 | VDDI | P | Power supply for logic circuit.(1.65V-2.0V) |
| 14 | VDD | P | Power supply for analog circuit.(2.5V-5.0V) |
| 15 | NC | - | No connection |
| 16 | GND | P | Ground |
| 17 | D3P | I | High speed interface data differential signal input |
| 18 | D3N | I | High speed interface data differential signal input |
| 19 | GND | P | Ground |
| 20 | D2P | I | High speed interface data differential signal input |
| 21 | D2N | I | High speed interface data differential signal input |
| 22 | GND | P | Ground |
| 23 | D1P | I | High speed interface data differential signal input |
| 24 | D1N | I | High speed interface data differential signal input |
| 25 | GND | P | Ground |
| 26 | D0P | IO | High speed interface data differential signal input/output |
| 27 | D0N | IO | High speed interface data differential signal input/output |
| 28 | GND | P | Ground |
| 29 | D3P | I | High speed interface clock differential signal input |
| 30 | D3N | I | High speed interface clock differential signal input |
