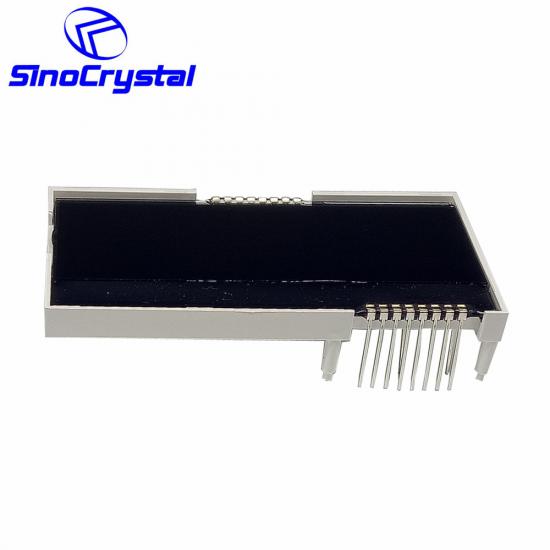

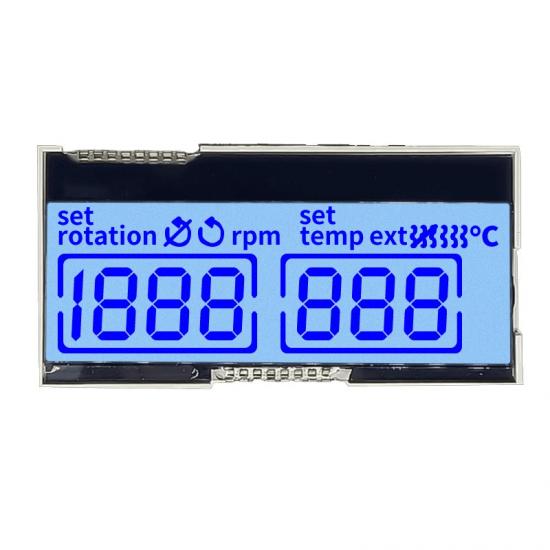

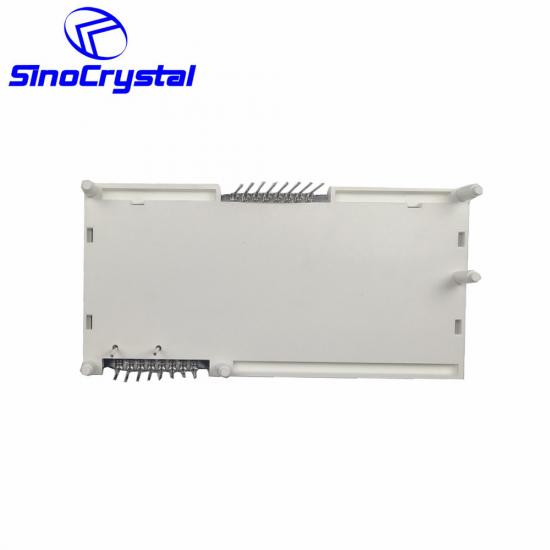

SCC0024-V01 is a Mono Graphic LCD DisplaySCC0024-V01是一款单图形液晶显示器，内置IST3042CA1 IC，8针，6点钟方向。
显示类型：COG LCD显示
外形尺寸：70.00*35.00*13.90
视野范围：65.00*21.00
draiver方法：静态
司机IC:IST3042CA1
观看方向：6点钟
引脚：8
背光：白色LED
型号:
SCC0024-V01Display Type:
TN-VAOutline Dimension (mm):
70.00*35.00*13.90View area:
65.00*21.00Driver IC:
IST3042CA1Backlight:
White LEDView Direction:
6PIN:

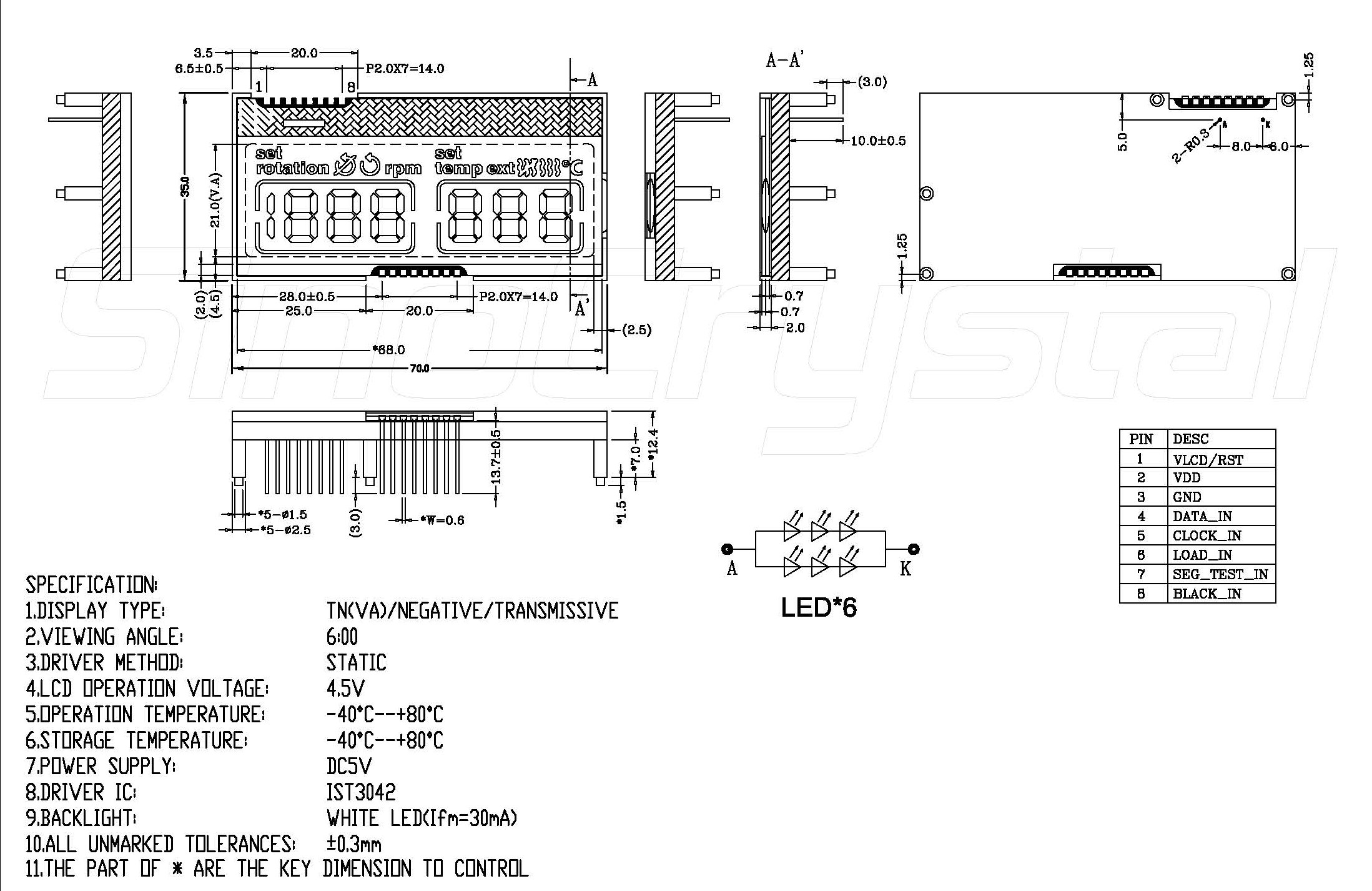

8Drawing
General Specification
| ITEM | STANDARD VALUE | UNIT |
| NUMBER OF GRAPHIC | SEGMENT | Mm |
| MODULE DIMENSION | 70.0×35.0×13.9 | Mm |
| EFFECTIVE DISPLAY AREA | 65.0×21.0 | Mm |
| DOT SIZE | - | Mm |
| DOT PITCH | - | Mm |
| LCD TYPE | TN(VA)/NEGATIVE/TRANSMISSIVE |
|
| DUTY | STATIC |
|
| VIEWING DIRECTION | 6 | o'clock |
| BACK LIGHT TYPE | SIDE LIT LED |
|
| BACK LIGHT COLOR | WHITE |
|
| APPROX. WEIGHT | TBD | G |
Interface Definition
| NO | SYMBOL | LEVEL | FUNCTION |
| 1 | VLCD/RST | -- | Power for LCD and Reset signal |
| 2 | VDD | -- | Power supply |
| 3 | GND | -- | Ground |
| 4 | DATA_IN | H/L | Data signal |
| 5 | CLOCK_IN | H/L | Shift clock signal |
| 6 | LOAD_IN | H/L | Load signal |
| 7 | SEG_TEST_IN | H/L | Segment test signal |
| 8 | BLACK_IN | H/L | Black signal |
