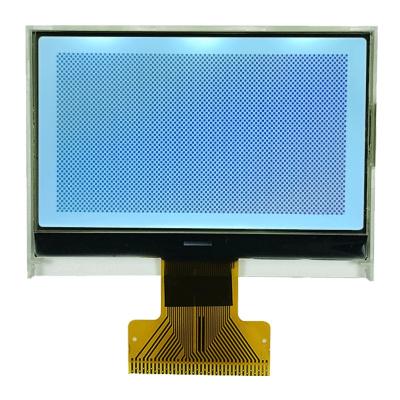

带COG STN Y-G BL ST7565R IC 36针的单液晶12864图形显示器

液晶显示器类型:STN/Y-G/正/透射/COG
分辨率:128×64
外形尺寸:71.00*51.80*8.5
活动面积:60.77*32.93
视野范围:65.50*38.00
驱动芯片:ST7565R
观看方向:6点钟
引脚:36
背光:白色LED


  • 型号:

    SC12864032-V02
  • Resolution:

    128*64
  • Outline Dimension (mm):

    71.0*51.8*5.3
  • Viewing Area (mm):

    65.5*38.0
  • Interface:

    -
  • Driver IC:

    ST7565R
  • Backlight:

    White LED
  • PIN:

    36
  • 产品详细信息

SC12864032-V02 is a Graphic LCD Display with 128*64 resolution, it built in with ST7565R-G-1 IC, 36 PIN, 6 o'clock View direction.

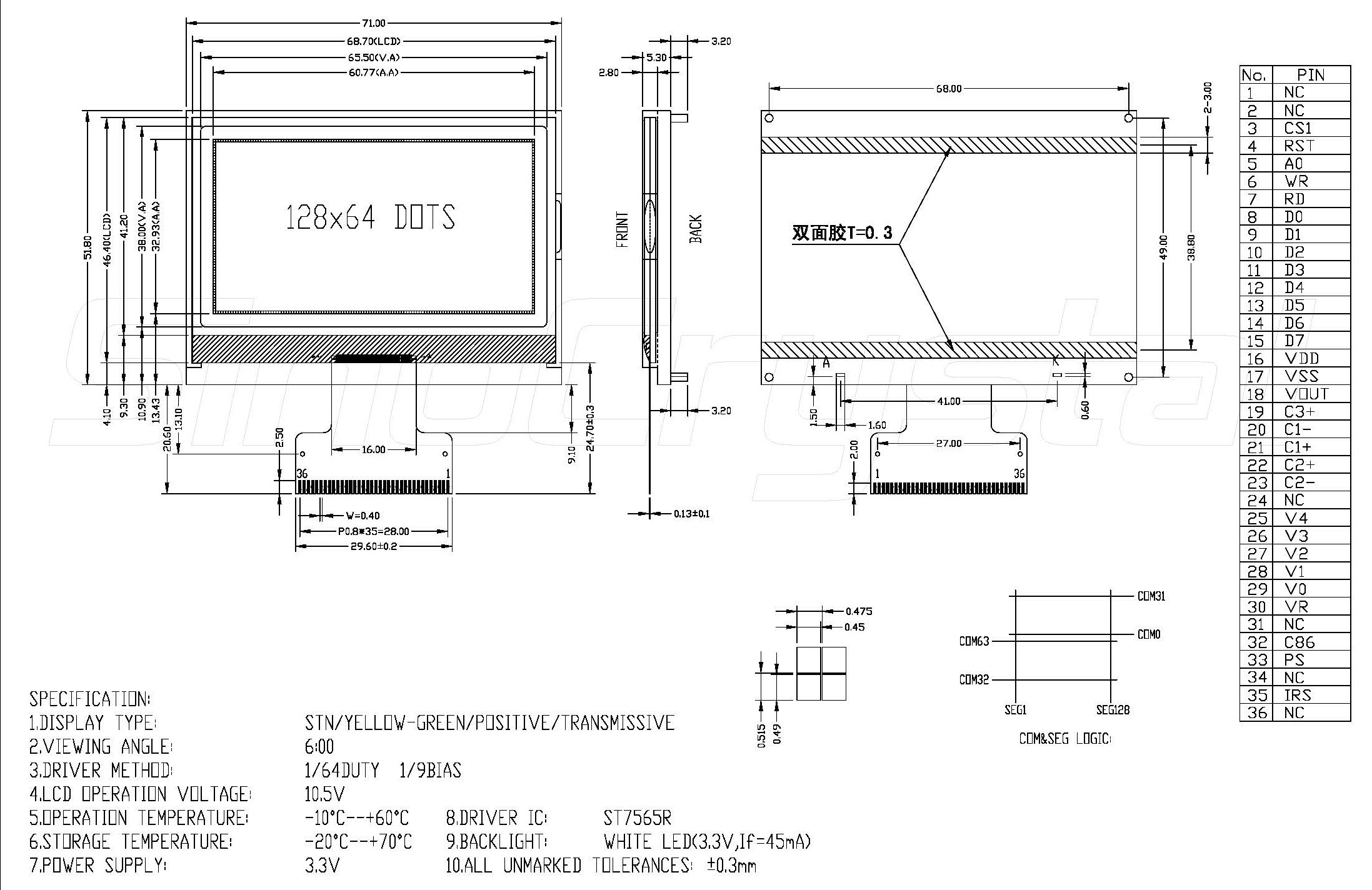

Drawing



General Specification


ITEM STANDARD VALUE UNIT
 NUMBER OF GRAPHIC 128×64 Mm
 MODULE DIMENSION 71.0×51.8×8.5 Mm
 VIEWING AREA 60.77×32.93 Mm
 DOT SIZE 0.45×0.49 Mm
 DOT PITCH 0.476×0.515
Mm
 LCD TYPE STN/YELLOW-GREEN/POSITIVE/TRANSMISSIVE
 DUTY 1/64
 VIEWING DIRECTION 6 o'clock
 BACK LIGHT TYPE SIDE LIT LED
 BACK LIGHT COLOR WHITE
 APPROX. WEIGHT TBD G



Interface Definition



NO SYMBOL LEVEL FUNCTION
1--2 NC - No used
3 CS1 H/L Chip select signal
4 RST H/L Chip reset signal
5 A0 H/L Register selection input
H : Indicate that D0 to D7 are display data.
L:Indicate that D0 to D7 are control data
6 WR(R/W) H/L 8080 series: Write signal
6800 series: Read or Write signal
7 RD(E) H/L 8080 series: Read signal
6800 series: Enable signal
8--15

This is an 8-bit bi-directional data bus that connects to an 8-bit or 16-bit standard MPU data bus.
When the serial interface (SPI-4) is selected (P/S = "L") : D7 : serial data input (SI) ;
D6 : the serial clock input (SCL).
D0 to D5 should be connected to VDD or floating.
16 VDD -- Supply voltage for logic
17 VSS -- Ground
18 VOUT -- Power for LCD
19 C3+ -- DC/DC voltage converter. Connect a capacitor between this
terminal and the CAP1N terminal.
20 C1- -- DC/DC voltage converter. Connect a capacitor between this
terminal and the CAP1P terminal.
21 C1+ -- DC/DC voltage converter. Connect a capacitor between this
terminal and the CAP1N terminal. Reset signal.
22 C2+ -- DC/DC voltage converter. Connect a capacitor between this
terminal and the CAP2N terminal.
23 C2- -- DC/DC voltage converter. Connect a capacitor between this
terminal and the CAP2P terminal. Chip select.
24 NC - No used
25-29 V4-V0 -- This is a multi-level power supply for the liquid crystal drive.
30 VR -- Contrast adjustment input.
31 NC - No used
32 C86 H/L C86 = "H": 6800 Series MPU interface.
C86 = "L": 8080 Series MPU interface.
33 PS H/L P/S = "H": Parallel interface
P/S = "L": Serial interface
34 NC - No used
35 IRS H/L RS = "H": Use the internal resistors
IRS = "L": Do not use the internal resistors.
36 NC - No used
