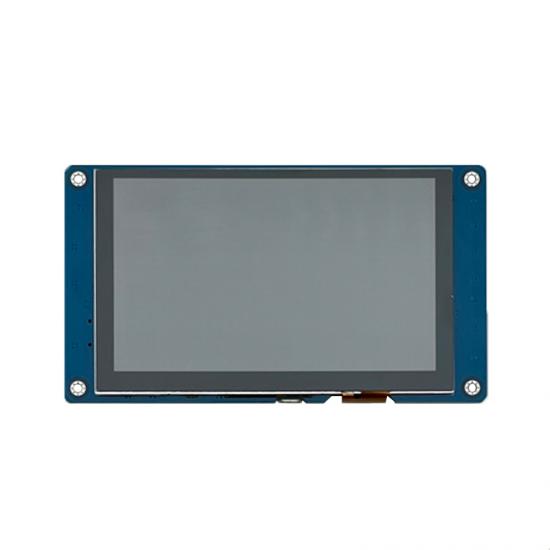

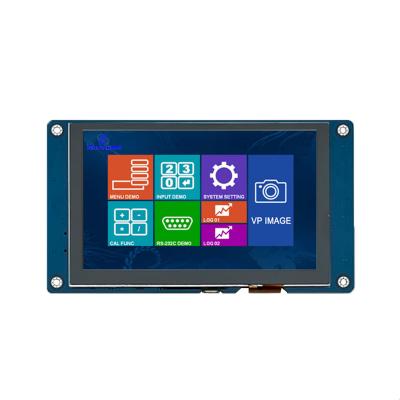

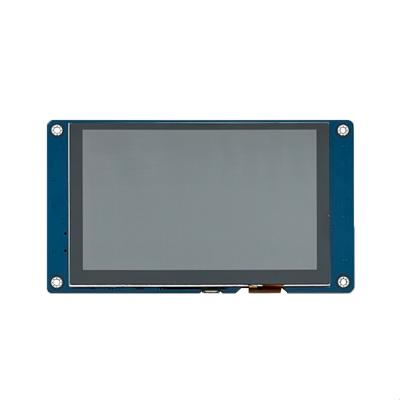

型号:
SCS050002-V01Size (inch)尺寸（英寸）:
5Type:
UartMode:
UartResolution:
800×480Outline Dimension (W)x(H)x(T):
120.70*76.30*8.07Active Area:
108.00*64.80Interface:
UartIC:
/Brightness:
300Touch Screen:
RTPView Directio:
12Pin No.:
8Shape:
Rectangle
General Specification
| 项目 Item | 说明 Description |
|
显示类型
Display Type |
TN, TFT LCD |
|
显示尺寸
Display Size |
5.0 英寸
5.0 Inch |
|
分辨
Resolution |
800 × 480 (支持 90°/180°/270 °旋转)
800 × 480 (Support 90°/180°/270° rotation) |
|
色彩深度
Color Depth |
262K 色 18 位 R6G6B6
262K Color 18-bit R6G6B6 |
|
显示尺寸
Active Area |
108.00mm × 64.80 mm |
|
亮度
Luminance |
300 尼特
300nits |
|
背光寿命
Backlight Service Life |
>30000 小时 (以最高亮度连续工作，亮度减半时间)
>30000 hours (Time of the brightness decaying to 50% on the condition of continuous working with the maximum brightness) |
|
背光调节
Brightness Control |
100 级亮度调节
0~100 grade |

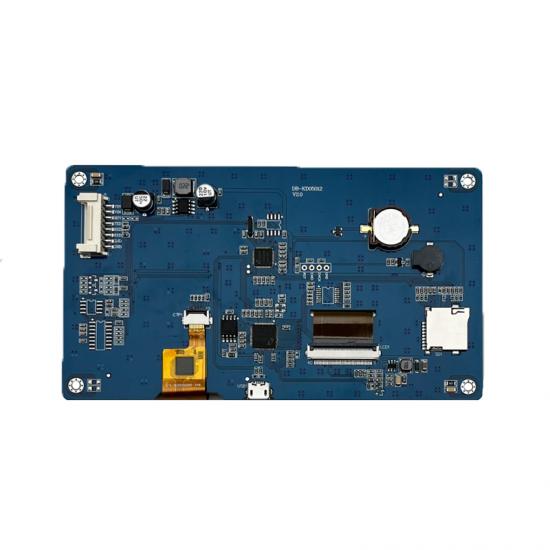

Interface Definition
|
序号
PIN No. |
符号
Symbol |
类型
Type |
描述
Description |
| 1 | GND | P |
电源地
Power Ground |
| 2 | GND | P |
电源地
Power Ground |
| 3 | RXD | I |
串口接收端口
UART Serial Port Receiving Port |
| 4 | RXD | I |
串口接收端口
UART Serial Port Receiving Port |
| 5 | TXD | O |
串口发送端口
UART Serial Port Sending Port |
| 6 | BUSY | O |
忙信号输出
Busy Flag Output |
| 7 | VIN | P |
电源输入正极
Power input anode |
| 8 | VIN | P |
电源输入正极
Power input anode |
